フランジプレート

for moduhub rotating modules

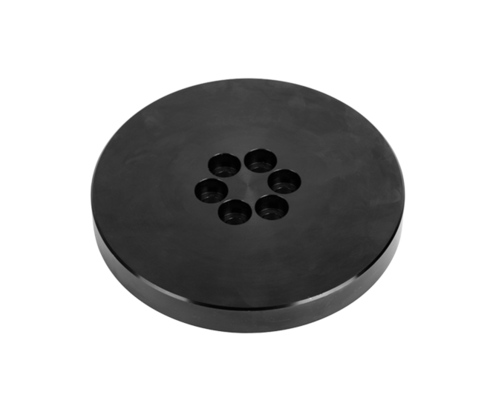

The flange plate can be used instead of the moduhub flange plate of the rotating modules - horizontal axis DMH and rotating modules - vertical axis DMV. Compared with the moduhub flange plate, this plate does not have an 140 x 140 moduhub interface. This plate offers the possibility to design individual fixing for component parts. Specific drilling patterns or other provisions for the location of component parts or fixtures can be provided by the user.
The flange plate can be easily exchanged against the moduhub flange plate.

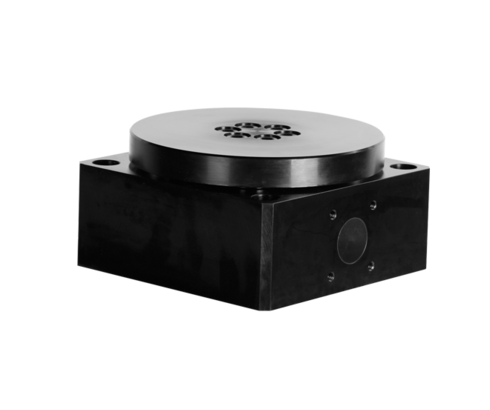

Rotating module - vertical axis DMV 1000 with flange plate Ø 170
