Description

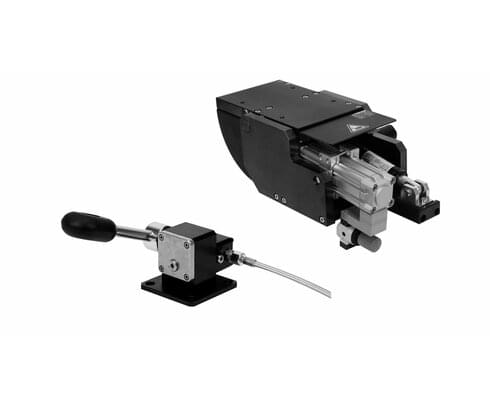

The tilting module KMB 100 with pedal-operated indexing offers the possibility of easy manual tilting of heavy components by ±90° and their reliable fixing.
The tilting module is equipped with a pneumatic balancer that compensates almost completely generated torques during tilting. Therefore only little forces are required for tilting of the component part. The balancer is adapted to the weight of the component part by a pneumatic pressure reducing valve. The operating unit of the indexing is connected by a 2 m long hydraulic hose to the tilting module. This flexible connection allows the individual placement of the operating unit at the most favourable ergonomic position.
The standard indexing positions are set to 0° and 90° . Other indexing positions are available on request (e.g. 0, 30, 45, 60 and 90 degrees).
The tilting module is equipped with a hydraulic brake for maximum operating safety.

Operation
The tilting module does not have any operating elements. The tilting operation is effected manually directly at the component part or at the assembly fixture. The indexing is operated by a foot pedal. By operating the foot pedal by 35° the index is released and the component part or the fixture can be tilted.
If the foot pedal is not operated, the index bolt engages automatically into the next indexing position. The operation with a foot pedal guarantees that the operator always has both hands free.

Advantages

• Easy tilting and fixing of components in angle positions 0° and 90°
• Compensation of the tilting torques by pneumatic balancer and brake cylinder
• Locking of individual tilting positions 0°/ 90°
• High load potential
• Suitable for table mounting
• Good accessibility from all sides
• Optimised ergonomics
• Easily combinable with other moduhub modules
