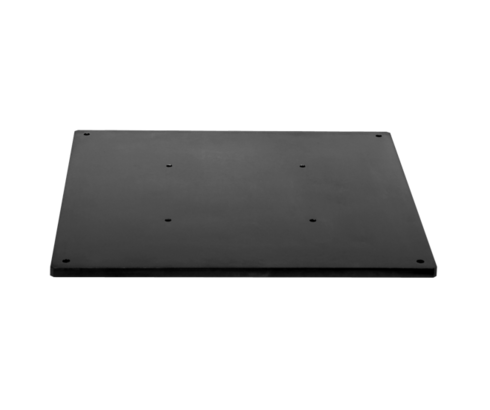

ベースプレート

for moduhub lifting modules
Base plates are primarily used with lifting modules. They are screwed to the lifting module and the floor to get a larger support surface and an increased stability of the lifting module. The use of base plates is especially recommended for uneven sub-floors and high moment loads.

Versions

• Base plate 500 x 500 mm with single interface 200 x 200
• Base plate 600 x 250 mm with single interface 200 x 200
• Base plate 750 x 500 mm with single and double interface 200 x 200

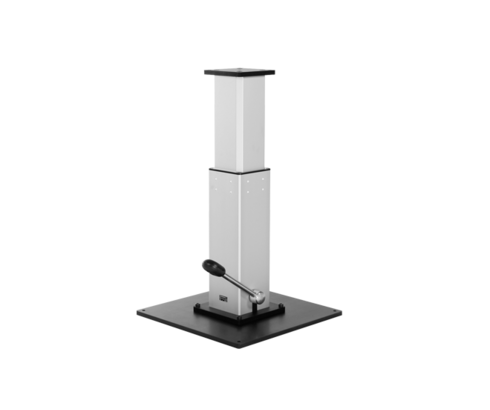

Lifting module Shop-Floor with base plate
